ARC OPSL 3-CHANNEL [RGB] Lasersystem

Our exceptional ARC OPSL series projectors feature high end Arctos DLP40-T drivers, coupled with 100% Coherent Genesis Taipan OPS Lasers, for laser show professionals demanding premium performance of their investment over an extended lifetime.

ARC OPSL RGB 10W

_

MAXIMUM OUTPUT	10.0W
639nm RED	> 2.0W (Coherent OPSL)
532nm GREEN	> 5.0W (Coherent OPSL)
460nm BLUE	> 3.0W (Coherent OPSL)

Beam Data Standard Beam Data Optional Analog Modulation Operational Voltage	Beam Size: < 2,5mm Divergence: < 1,0mrad Beam Size: < 5,0mm Divergence: < 0,5mrad 0-5V up to 50kHz 110-265 VAC @ 750W, 50-60Hz

ARC OPSL RGB 13W

_

MAXIMUM OUTPUT	13.0W
639nm RED	> 2.0W (Coherent OPSL)
532nm GREEN	> 8.0W (Coherent OPSL)
460nm BLUE	> 3.0W (Coherent OPSL)

Beam Data Standard Beam Data Optional Analog Modulation Operational Voltage	Beam Size: < 2,5mm Divergence: < 1,0mrad Beam Size: < 5,0mm Divergence: < 0,5mrad 0-5V up to 50kHz 110-265 VAC @ 750W, 50-60Hz

ARC OPSL RGB 15W

_

MAXIMUM OUTPUT	15.0W
639nm RED	5.0W (Coherent OPSL)
532nm GREEN	8.0W (Coherent OPSL)
460nm BLUE	2.0W (Coherent OPSL)

Beam Data Standard Beam Data Optional Analog Modulation Operational Voltage	Beam Size: < 2,5mm Divergence: < 1,0mrad Beam Size: < 5,0mm Divergence: < 0,5mrad 0-5V up to 50kHz 110-265 VAC @ 750W, 50-60Hz

DIMENSIONS

Dimensions Weight	303mm(H) x 503mm(W) x 348mm(L) ca. 45-65kg (depending on 3-/ 4-/ 5-Channel System)

Dimensions
Weight

303mm(H) x 503mm(W) x 348mm(L)
ca. 45-65kg (depending on 3-/ 4-/ 5-Channel System)

ILDA Standard D-Sub 25p Integr. DMX Laser Server USB	In-/ and output optional optional

ILDA Standard D-Sub 25p
Integr. DMX Laser Server
USB

In-/ and output
optional
optional

ARCTOS IS CERTIFICATED INTEGRATOR OF COHERENT

CERTIFIED ARCTOS OPSL DRIVER	DLP 40-T

CERTIFIED ARCTOS OPSL DRIVER

DLP 40-T

INNOVATIVE AIR-AND/OR LIQUID COOLING FOR TOP PERFORMANCE

The ARC OPSL SERIES is provided with a processor controlled internal thermoelectric cooling of heat-generating components and exceptional internal heat dissipation.
Operational Temperature	8°C up to 30°C [optimal operation temperature: 25°C]

TECHNICAL DATA

Scanning System Standard Scanning System Optional NEW System available Scanning Features ARCTOS Mainboard Blue LC-Display	CT 6800 / 35 kpps@8° with 1M0 CT 6215 / 60 kpps@8° with 3M0 CT 8330K ! Cambridge Technology Quality with Servoamp Internal scanner safety circuit High speed 80.000 pps ILDA Standard Processor controlled Digital test mode, digital colour adjustment/calibration For internal function control

Scanning System Standard
Scanning System Optional
NEW System available

Scanning Features

ARCTOS Mainboard

Blue LC-Display

CT 6800 / 35 kpps@8° with 1M0
CT 6215 / 60 kpps@8° with 3M0
CT 8330K !

Cambridge Technology Quality with Servoamp
Internal scanner safety circuit
High speed 80.000 pps ILDA Standard
Processor controlled
Digital test mode, digital colour adjustment/calibration
For internal function control

SYSTEM FEATURES

+ Compact solid housing made by ARCTOS
+ Integrated scanner plug`n play concept
+ Best stability and lifetime
+ Designed for laserprofessionals!
+ Dynamic Zone Safety
+ Energy Saving
+ Super Silent
+ ESD Protected Stabilized Switching Power Supplies
+ Microprocessor controlled
+ ARC-Modular construction
+ YOKE designed against shear forces
+ DMX Ready
+ Ethernet Ready

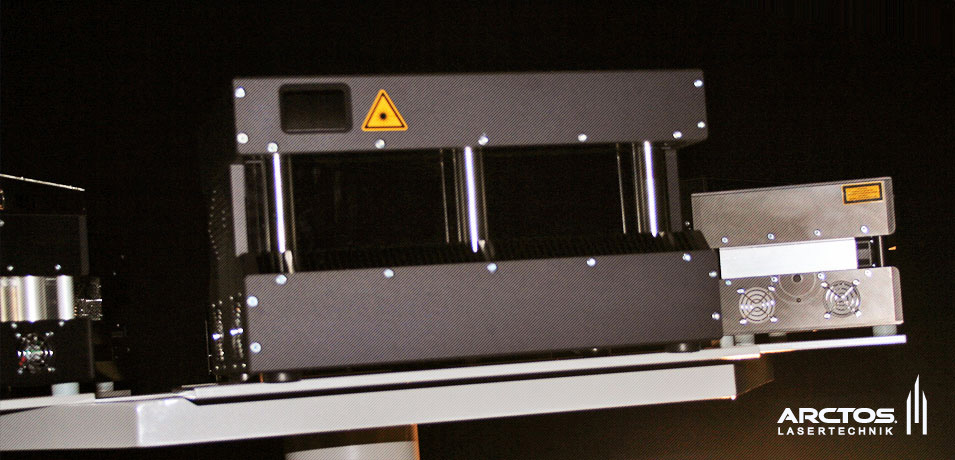

COMPACT AND SOLID HOUSING MADE BY ARCTOS

CNC-milled black anodized aluminium
Mechanical levitated design
Automatic cooling/heating for optimal laser parameters
Dust proof optical compartment
Maintenance free and long lifetime
Ultra rugged, compact and reliable housing design

LASER CONTROL & SAFETY

+ The new electric mainboard manufactured by ARCTOS allows many system features + Control of all internal operating voltages via blue LC Display + Reduced fan noise by analog fan-control + Faster service access + Gradual power supply start for all + "Softstart" for avoiding power peaks during switch-ON + DMX menu guidance (FB3-Series) + Auto mode for laser head disconnection + Sequential cooling/heating depending on temperature peaks + Shortened safety shutter speed time ca: 17msek

+ The new electric mainboard manufactured by ARCTOS allows many system features
+ Control of all internal operating voltages via blue LC Display
+ Reduced fan noise by analog fan-control
+ Faster service access
+ Gradual power supply start for all
+ "Softstart" for avoiding power peaks during switch-ON
+ DMX menu guidance (FB3-Series)
+ Auto mode for laser head disconnection
+ Sequential cooling/heating depending on temperature peaks
+ Shortened safety shutter speed time ca: 17msek

ACCESSORIES & EXTRAS

ARC-Remote control unit incl. CDRH-standard & time delay max.cable length 60m
Interlock AMP safety-standard for illuminated "Emergency"
Integrated Pangolin Flashback
RGB potentiometers
Gratings (holographic mirrors)
Customized Climate box for outdoor installations
Customized Flightcases Made by Amptown
