ARC DIODE Single Color Showlasersystems

With the ARC DIODE single color lasersystems we have created a separate laser family over years, corresponding to customer´s individual wishes. This Series is our own brilliant quality single color OEM lasersystem. We would be proud and pleased to consult you about the best adequate customer-tailored single color lasersystem!

ARC DIODE RED

Single Color Lasersystem with 100% patent pending red diode laser beam source.

---

Serial ARC DIODE RED with 650nm (± 5nm):

650nm unpolarized	2.5W	<5,0mm	<0,6mrad
		or <2,8mm	<1,1mrad
650nm unpolarized	5.0W	<5,0mm	<1,1mrad
650nm unpolarized	10.0W	<6,0mm	<1,0 /1,5mrad

Serial ARC DIODE RED with 637+650nm mixed:

637+650nm unpolarized	2.5W	<5,0mm	<0,65mrad !!
637+650nm polarized	5.0W	<2,0mm	<0,65mrad
637+650nm polarized	10.0W	<6,0mm	<1,0 / 1,5mrad

Serial ARC DIODE RED with 637nm:

637nm unpolarized	2.5W	<2,0mm	<0,5mrad
		or <2,8mm	<0,6mrad
637nm unpolarized	5.0W	<5,0mm	<1,1mrad
637nm unpolarized	10.0W	<6,0mm	<1,0 / 1,5mrad

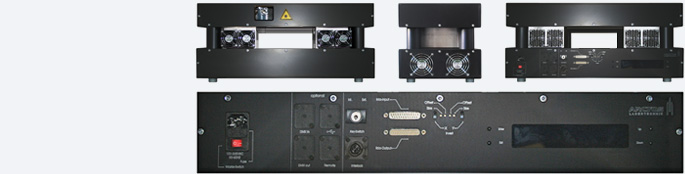

ARC DIODE SINGLE DIMENSIONS up to 5.0W

Dimensions Weight

212mm(H) x 390mm(W) x 260mm(L) <20kg (without brackets)

Signal Input-/Output USB DMX

ILDA Standard D-Sub 25p optional optional

ARC DIODE SINGLE DIMENSIONS up to 10.0W

Dimensions Weight

281mm(H) x 615mm(W) x 270mm(L) <55kg (without brackets)

Signal Input-/Output USB DMX Network ready Ethernet Ready

ILDA Standard D-Sub 25p optional optional ? ?

TECHNICAL DATA

Scanning System Standard Scanning Features Manual inverse function Signal Input/Output Operational Temperature Air-cooled system	CT 6800 / 35 kpps@8° with 1M0 Cambridge Technology incl. ARCTOS High-Speed driver Internal scanner safety circuit High speed 60.000 pps max. speed depend. on angle x/y-axis; offset and size ILDA Standard D-Sub 25p 8°C up to 30°C [optimal operation temperature: 25°C] Intelligent low noise thermal-management system Automatic cooling/heating for optimal laser parameters

COMPACT AND SOLID HOUSING MADE BY ARCTOS

CNC-milled black anodized aluminium
Mechanical levitated design
Automatic cooling/heating for optimal laser parameters
Dust proof optical compartment
Maintenance free and long lifetime
Ultra rugged, compact and reliable housing design

SYSTEM FEATURES

+ Compact solid housing made by ARCTOS
+ Integrated scanner plug`n play concept
+ Best stability and lifetime
+ Designed for laserprofessionals!
+ Dynamic Zone Safety
+ Energy Saving
+ Super Silent
+ Microprocessor controlled
+ ARC-Modular construction
+ YOKE designed against shear forces

LASER CONTROL & SAFETY

+  Reduced fan noise by analog fan-control +  Faster service access +  Gradual power supply start for all +  "Softstart" for avoiding power peaks during switch-ON +  Auto mode for laser head disconnection +  Sequential cooling/heating depending on temperature peaks +  Shortened safety shutter speed time ca: 17msek
