ARC JENLAS Single Color Showlasersystems

With our single color lasersystems we have created a separate laser family over years, corresponding to customer´s individual wishes. This System is our own brilliant quality single color laser with green Jenlas source. We would be proud and pleased to consult you about the best adequate customer-tailored single color lasersystem!

ARC JENLAS GREEN

100% Jenlas green laser beam source with  ARCTOS© original Driver Series DLP

---

Serial ARC JENLAS GREEN with 532nm:

JENLAS 532nm	3.0W
JENLAS 532nm	5.0W
JENLAS 532nm	8.0W
JENLAS 532nm	10.0W
JENLAS 532nm	16.0W
JENLAS 532nm	20.0W

ARC JENLAS SINGLE DIMENSIONS

Dimensions Weight

212mm(H) x 390mm(W) x 260mm(L) <20kg (without brackets)

Signal Input-/Output USB DMX

ILDA Standard D-Sub 25p optional optional

TECHNICAL DATA

Scanning System Standard Scanning Features Manual inverse function Signal Input/Output Operational Temperature Air-cooled system	CT 6800 / 35 kpps@8° with 1M0 Cambridge Technology incl. ARCTOS High-Speed driver Internal scanner safety circuit High speed 60.000 pps max. speed depend. on angle x/y-axis; offset and size ILDA Standard D-Sub 25p 8°C up to 30°C [optimal operation temperature: 25°C] Intelligent low noise thermal-management system Automatic cooling/heating for optimal laser parameters

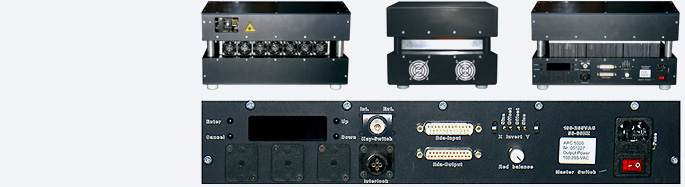

COMPACT AND SOLID HOUSING MADE BY ARCTOS

CNC-milled black anodized aluminium
Mechanical levitated design
Automatic cooling/heating for optimal laser parameters
Dust proof optical compartment
Maintenance free and long lifetime
Ultra rugged, compact and reliable housing design

SYSTEM FEATURES

+ Compact solid housing made by ARCTOS
+ Integrated scanner plug`n play concept
+ Best stability and lifetime
+ Designed for laserprofessionals!
+ Dynamic Zone Safety
+ Energy Saving
+ Super Silent
+ Microprocessor controlled
+ ARC-Modular construction
+ YOKE designed against shear forces

LASER CONTROL & SAFETY

+  Reduced fan noise by analog fan-control +  Faster service access +  Gradual power supply start for all +  "Softstart" for avoiding power peaks during switch-ON +  Auto mode for laser head disconnection +  Sequential cooling/heating depending on temperature peaks +  Shortened safety shutter speed time ca: 17msek

ACCESSORIES & EXTRAS

The ARC DIODE Series is available with additional Grating Box Module - Penthouse Edition
ARC-Remote control unit incl. CDRH-standard & time delay max.cable length 60m
Interlock AMP safety-standard for illuminated "Emergency"
Integrated Pangolin Flashback
RGB potentiometers
Gratings (holographic mirrors)
Customized Climate box for outdoor installations
Customized Flightcases Made by Amptown
