PENTHOUSE LASERBEAM TABLES

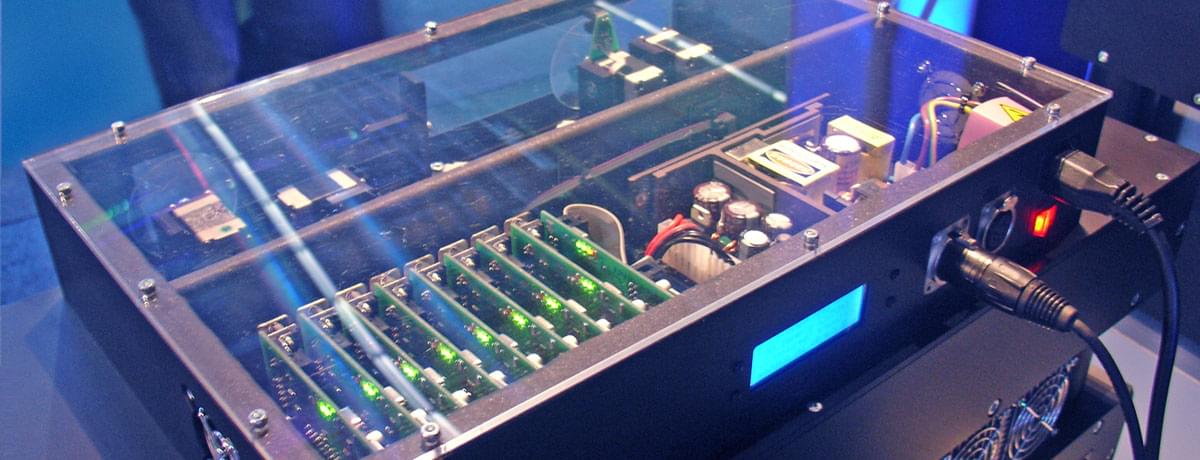

DMX controlled grating box module - especially designed for the ARCTOS lasers

PENTHOUSE SYSTEM FEATURES

Operational Voltage Stromaufnahme Signal Input Diemsions / Weight	110-265VAC, 50-60Hz <2,0A DMX Neutrik 5-Pol Depends on the respective ARCTOS System

ADMX controlled with various grating effects Burst, line, machado, polysector rotating and overlaid Speed adjustment over DMX Allocation to any desired DMX address on the backside system panel Fast & easy setup Configuration over Menu Free DMX channel allocation Place for ~10 motor-drives & beam switches of DMX-Nano Series

Operational Voltage
Stromaufnahme
Signal Input
Diemsions / Weight

110-265VAC, 50-60Hz
<2,0A
DMX Neutrik 5-Pol

Depends on the respective ARCTOS System

ADMX controlled with various grating effects

Burst, line, machado, polysector rotating and overlaid

Speed adjustment over DMX

Allocation to any desired DMX address on the backside system panel

Fast & easy setup

Configuration over Menu

Free DMX channel allocation

Place for ~10 motor-drives & beam switches of DMX-Nano Series

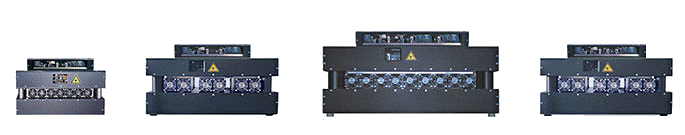

ARCTOS PENTHOUSE LASERBEAM TABLES

Grating Box Module for the ARCTOS Systems

GRATING EFFECTS

+ Line Grating rotierend, Rotation und Rotationsgeschwindigkeit über DMX einstellbar
+ Machado Grating feststehend
+ Burst Grating rotierend, Rotation und Rotationsgeschwindigkeit über DMX einstellbar
+ 10x fold polysector - transmittive
+ 10x fold polysector - overlaied with rotating burst effect

MACHADO GRATING

Effect Active Surface Dimensions	180° line grid - grating transmittive 10x6mm 25x25x1mm

BURST GRATING

Effect Dimensions	Grid-Grating transmittive Ø=50mm

LINE GRATING

Effect Dimensions	Line grating transmittive Ø=50mm

POLY GRATING

Effect Dimensions	10x fold polysector - transmittive 10x fold polysector - overlaied with rotating burst effect Ø=50mm
